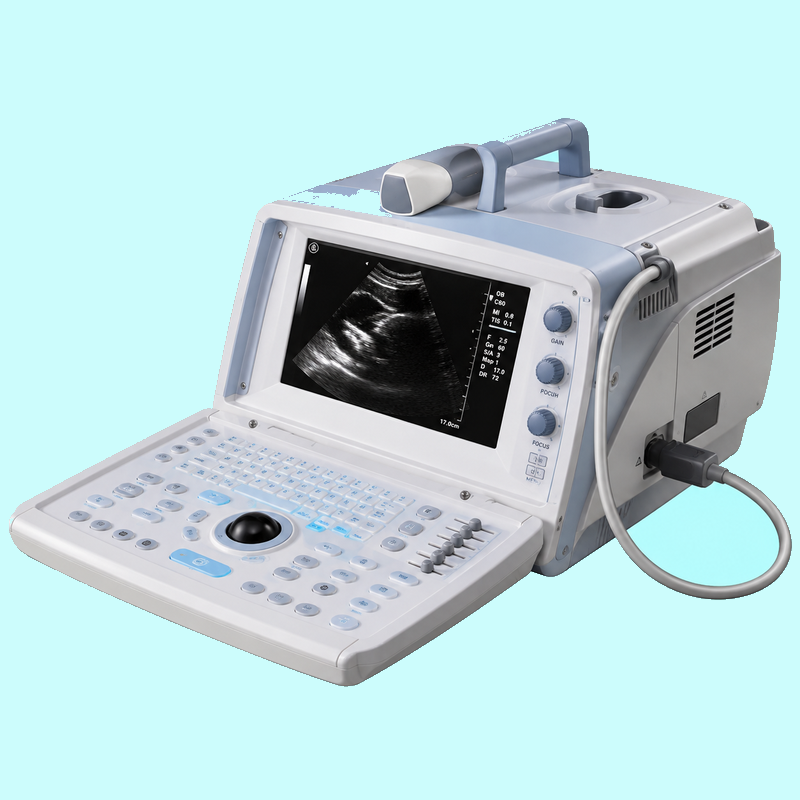

| Ultrasonic Diagnostic Imaging system, adopting advanced imaging process technologies such as multi-step dynamic focusing, dynamic aperture imaging, dynamic frequency scan, non-interlaced display etc. provides high resolution and high definition images. The multiple probes selectable and powerful functions make KI-13-3496 more suitable for application in abdomen, urology, gynaecology obstetrics and small parts. |
| Technical Specifications |
| Imaging Mode |
B, B+B, B+M, M |
| Scanning Mode |
Electronic convex, electronic linear |
| Gray Scale |
256 |
| Display |
10“ high resolution non-interlaced monitor |
| Probe Frequency |
2.5-7.5MHz |
| Multi-frequency probe |
Available |
| Scanning Depth |
200mm |
| Zoom Function |
Write and read zoom, 2 times max. |
| Colour-coded display |
7 colours selectable |
| Power Supply |
220?10%, 50Hz, 50VA |
| Dimension |
353mmx315mmx253mm |
| Net Weight |
11.5Kg (convex probe inclusive) |
| Standard configuration |
Main unit including 10” high resolution monitor + 1 probe 3.5 MHz |
|
| ? |
| Technical Data |
| Power Supply |
Nominal 415 at. 0.5 W powerline resistance 50/60 Hz. |
| Output |
300m A and 100/125kvp. |
| Fluoroscopy |
40Kv to 100Kv in 8 steps |
| Rediography |
40Kv to 115 Kv in 8 steps.
0Kv to 10Kv in 6 steps.
On large focus 100, 200, 300mA. |
| Timer |
10ms to 5s in 23 steps |
| X-ray Tube |
Single Tube/Double Tube Compatible with BELDRA-1-125/20/40/Equivalent imported tubes with higher rating. |
|
