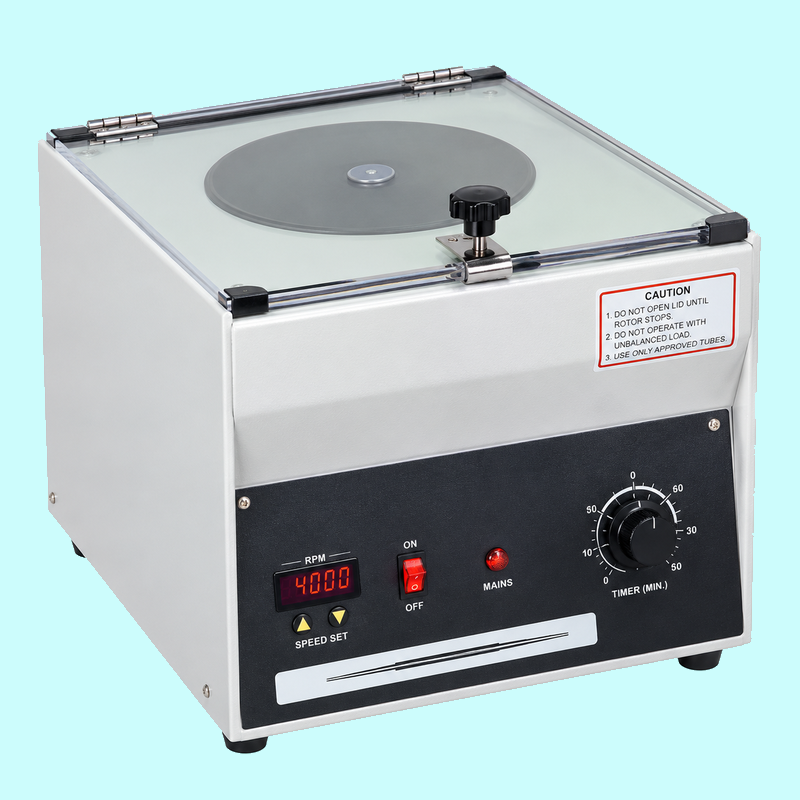

With Centrifuge Medical & Institutional laboratories can obtain better performance than ever before available with a centrifuge of this type. Special features include :
- Easy lid lock step-less speed regulator Safety Fuse, Elegant front panel.With a wide choice of rotor heads and adaptors. this unit is truly versatile This centrifuge is available in a choice of 2 models.
- The R-8c has additional digital speed meter and timer.
- Now available for special applications: The centrifuge model R-*c has now been made more versatile and suitable for the following special application.
- T.B. Tests in Hospital: Mac Cartney Test Bottles used for T.B. Tests can now be directly centrifuged.
|
| TECHNICAL DATA |
| Max. Speed |
RPM |
5250 |
| MAX. rcf |
g. |
3600 |
| Max. Capacity |
ml |
ml 3200 |
| WXDXH |
mm |
365 X 410 X 315 |
| Supply 230 Volts Single Phase 50Hz AC/DC |
|
| ? |
| ROTOR HEADS LISTING |
| Models |
Capacity |
Max. Speed RPM |
Max.RCF “G” |
| KI-19-525 |
16 X 15 ml. |
4000 |
2750 |
| KI-19-526 |
12 X 15 ml. |
4000 |
2750 |
| KI-19-527 |
8 X 15 ml. |
4200 |
3000 |
| KI-19-528 |
6 X 50 ml. |
4000 |
2800 |
| (Also accepts Mac Cartney Bottle for T.B. Tests) |
| KI-19-529 |
4 X 50 ml. |
4000 |
2750 |
| Angle Heads (with polypropylene Tube) |
| KI-19-530 |
16 X 15 ml. |
5000 |
3600 |
| KI-19-531 |
12 X 15 ml. |
5250 |
3600 |
| KI-19-532 |
8 X 15 ml. |
5250 |
3600 |
| KI-19-533 |
6 X 50 ml. |
5000 |
3600 |
| KI-19-534 |
4 X 50 ml. |
5250 |
3600 |
| REDUCTION ADAPTORS (with glass tubes) |
| Adaptor Cat No. |
Capacity |
Fits Head cat No. |
Qty./Det |
| KI-19-535 |
1 X Wintrob |
R-81/R-83 |
16 |
| KI-19-536 |
1 X Wintrob |
R-81A/R-83A |
12 |
| KI-19-537 |
1 X Wintrob |
R-81B/R-83B |
8 |
| KI-19-538 |
1 X 3 ml. |
R-81/R-83 |
16 |
| KI-19-539 |
1 X 3 ml. |
R-81A/R-83A |
12 |
| KI-19-540 |
1 X 3 ml. |
R-81B/R-83B |
8 |
| KI-19-541 |
1 X 5 ml. |
R-81/R-83A |
16 |
| KI-19-542 |
1 X 5 ml. |
R-81A/R-83A |
12 |
| KI-19-543 |
1 X 8 ml. |
R-81/R-83 |
16 |
| KI-19-544 |
1 X 8 ml. |
R-81A/R-83 |
12 |
| KI-19-545 |
1 X 8 ml. |
R-81B/R-83B |
8 |
| KI-19-546 |
1 X 30 ml. |
R-82/R-84 |
6 |
| KI-19-547 |
1 X 30 ml. |
R-82A/R-84A |
4 |
| KI-19-548 |
1 X 15 ml. |
R-82/R-84 |
6 |
| KI-19-549 |
1 X 15 ml. |
R-82A/R-84A |
4 |
| Note : Tube capacity mentioned is nominal and not the actual filling capacity. |
|
