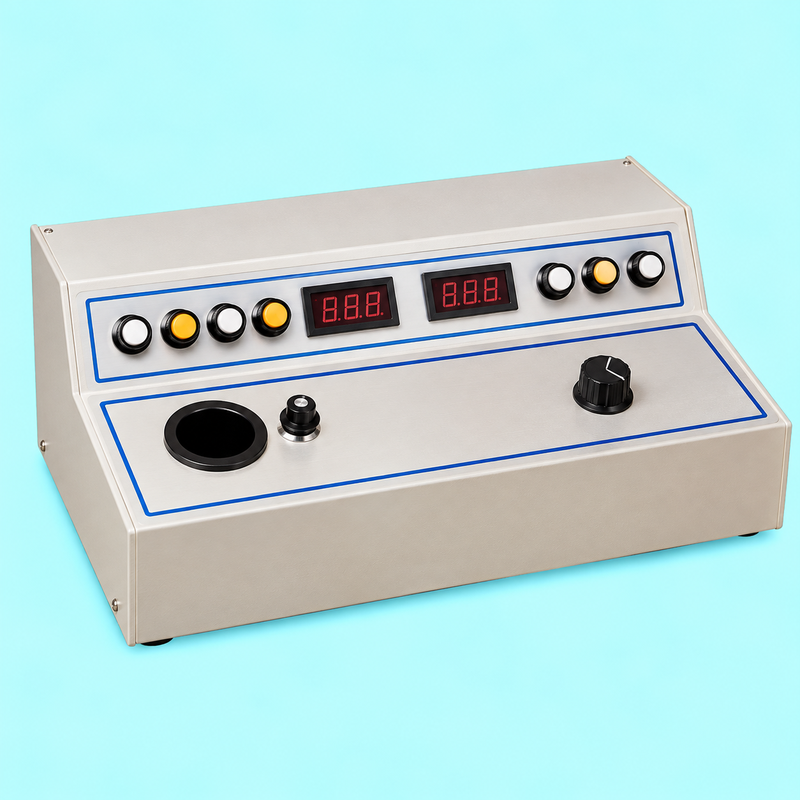

| The spectrophotometer is a single beam micro controller based visible spectrophotometer operates at wavelength of 340 mm to 960 nm. It is a rugged, accurate & reliable instrument for spectrometric analysis of any solution/liquid. The optical system has a diffraction grating as the monochromator and produces linear spectrum. The grating has a resolution of 600 lines / mm. The output is available on a 16X2 LCD alphanumeric display in terms of :
Wave Length (lnm), ABS (O.D.) Trams. (T.)
Wave length (lnm), ABS (O.D.) Conc. (C.) |
| TECHNICAL SPECIFICATIONS : |
| Wavelength Range |
340 – 960 nm |
| Band width |
Less than 10 nm |
| Wave length resolution |
2 nm |
| Resolution |
0.1% T
0.001 ABS
0.01 CONC |
| Photometric Range |
0-100% in Transmission mode
0-1999 in ABS mode. |
| Sample Compartment |
12 mm ? matched Borosil Glass test tubes |
| Display |
16 X 2 LCD Apphanumeric with backlit |
| Photometric Readout |
Digital display selectable for :
Wave Length (lnm), ABS (O.D), Trans (T.)
Wave (lnm), ABS (O.D.) Conc. (C) |
| Key Board |
6 Keys, Soft Touch |
| Detector |
Highly Sensitive Si Photodiode |
| Grating |
Monochromatic, 600 Lines /mm |
| Light Source |
6 V, 18 W, Halogen Lamp |
| Auto-Zero facility |
Yes KI-17-lable |
| Power Supply |
230 ? 10%, 1 ? AC |
| Dimensions |
480 mm X 300 X 180 mm |
| Weight |
Approx 10 Kg. Net. |
| STANDARD ACCESSORIES: |
| Spectrophotometer (ModelLM – 340mC) |
1 No. |
| Matched Glass Test Tubes |
10 Nos. |
| Dust Cover |
1 No. |
| Instruction Manual |
1 No. |
| Standred Solutions |
1 Set. |
| Product Profile |
Applications |
| Photocolormeters |
Chemical Laboratories |
| Foetal Heart Monitor |
Pharmaceutical Laboratories |
| Blood Cell Counter |
Agriculture Soil analysis |
| Hb Reader |
Mineral water plants |
| Hb/Bl Reader |
Food & Beverages analysis |
| Needle Syringe Destroyer |
Pathological / Clinical labs |
| pH/mV Meter |
Fertilisers & Pesticides analysis |
| TDS/Conductivity Meter |
Leather Industries. |
